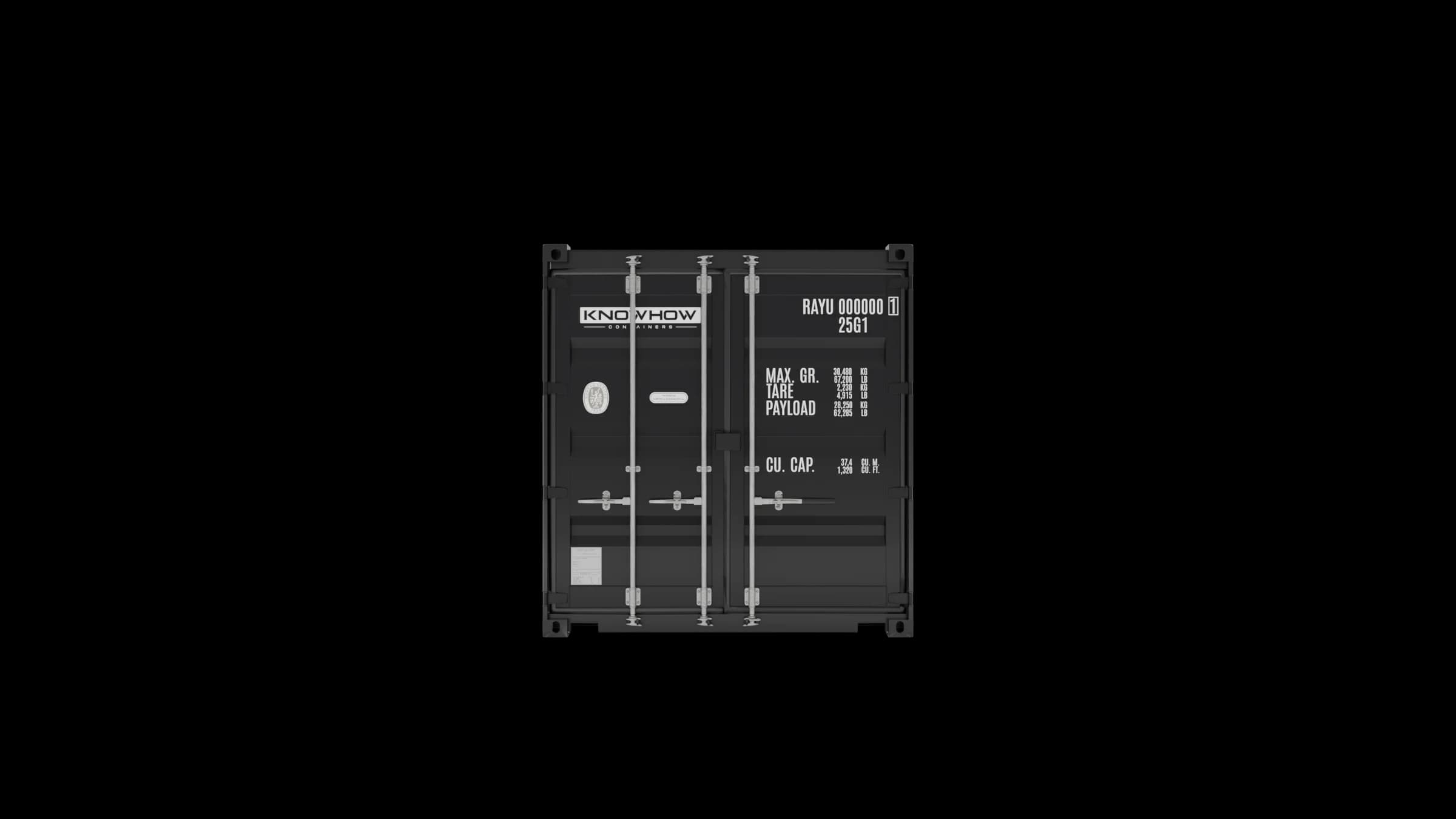

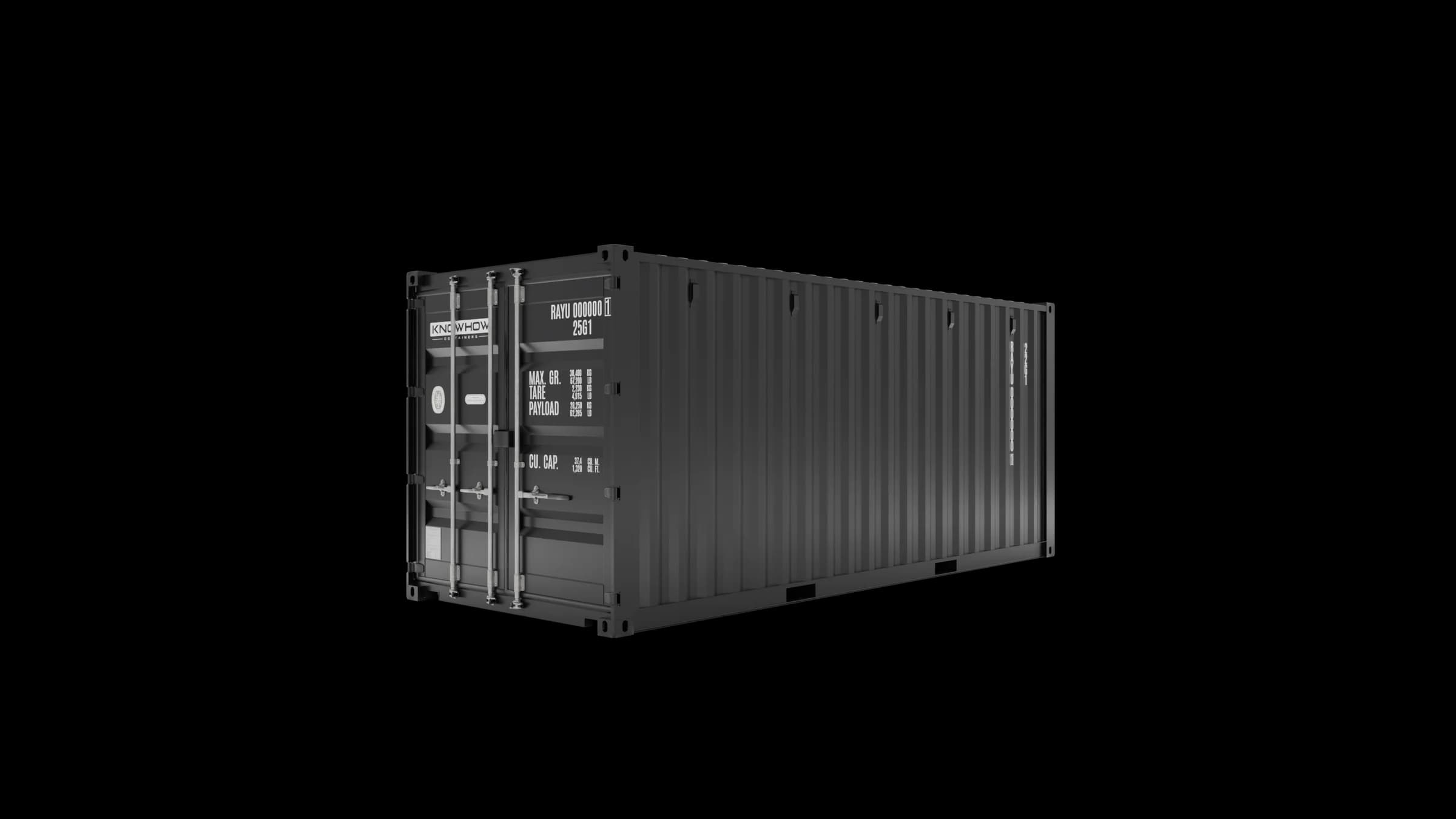

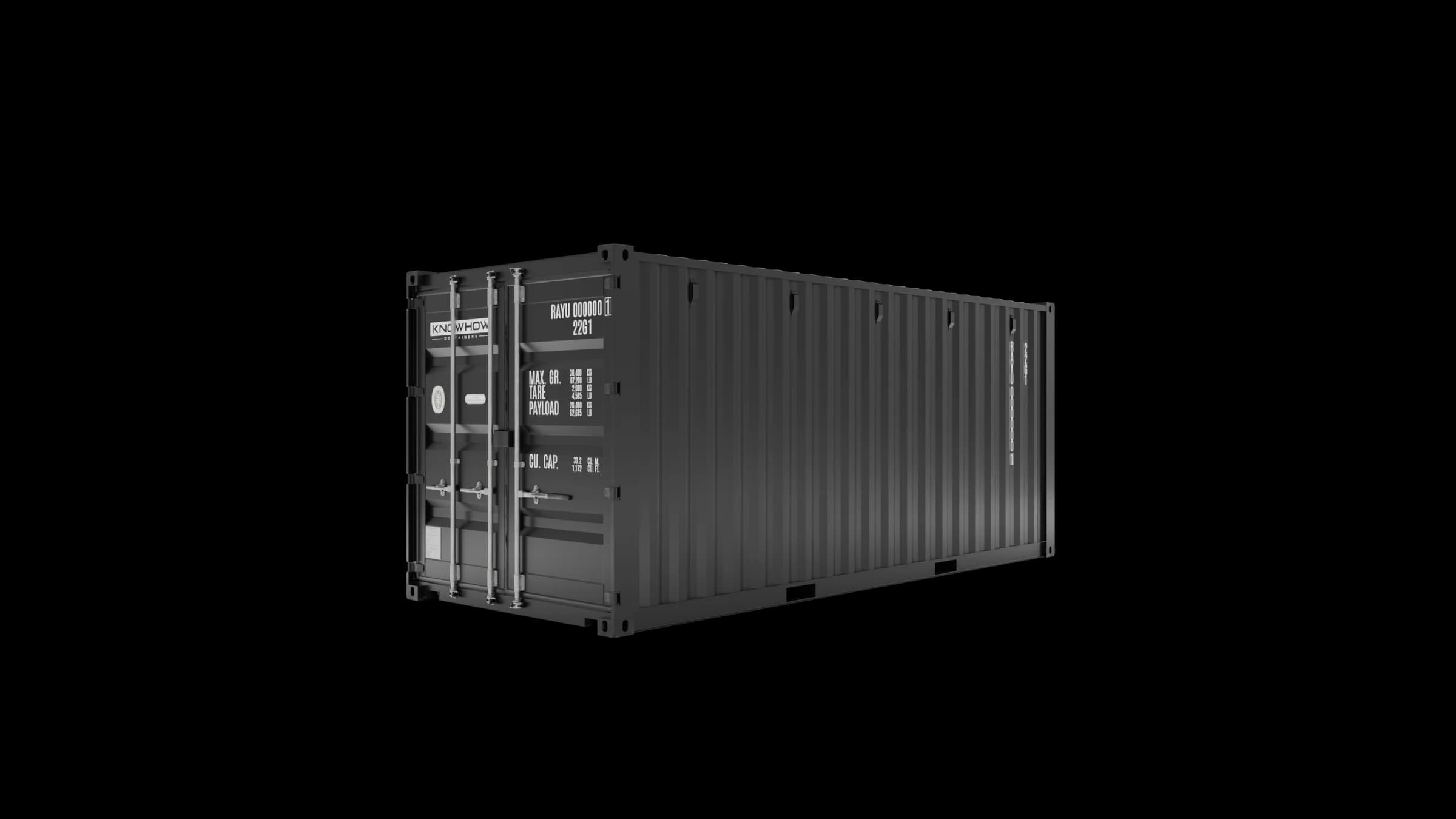

20ft dry van container in dark grey, front-right corner view showing door end with locking bars, hinges, and container markings.Front view of a black 20ft dry van shipping container showing double cargo doors with locking bars, hinges, and visible markings including RAYU 000000 25G1, MAX. GR., TARE, PAYLOAD, and CU. CAP. specifications.20ft dry van container with both cargo doors fully open, viewed from the door end, showing the empty interior with corrugated walls and dark floor.Right-side view of a dark grey 20ft dry van container, showing corrugated side wall with vertical text and identification markings.Rear view of a 20ft dry van container with vertical corrugation and BAYOOOOR branding, shown in dark grey against a transparent background.Left-side view of a 20ft dry van container in dark grey, showing corrugated wall and corner castings.Top-down view of a 20ft dry van container showing corrugated roof panel with RAYU 000000 markings on both ends.

Know How Container Reference

20ft Dry Van Container

ISO nominal size

Length

20FT

6.06 m

Width

8FT

2.44 m

Height

8FT 6IN

2.59 m

Description

The 20ft Dry Van Container family is a general-purpose ISO freight container for international shipping, palletised goods, site storage, self-storage, temporary warehousing, and inventory overflow. Active specifications cover one-trip units in standard, moving, and steel-floor variants, all with 6,058 mm × 2,438 mm × 2,591 mm external dimensions. Payloads range from 28,120 kg to 28,400 kg, tare weights from 2,080 kg to 2,400 kg, with listed volume of 33.20 m³ on the standard variant.

Request quote

Available specifications

Exact stock records for this family

Open a technical specification when you need exact technical data, ISO code, dimensions, weight limits, standards, and stock-specific build details.

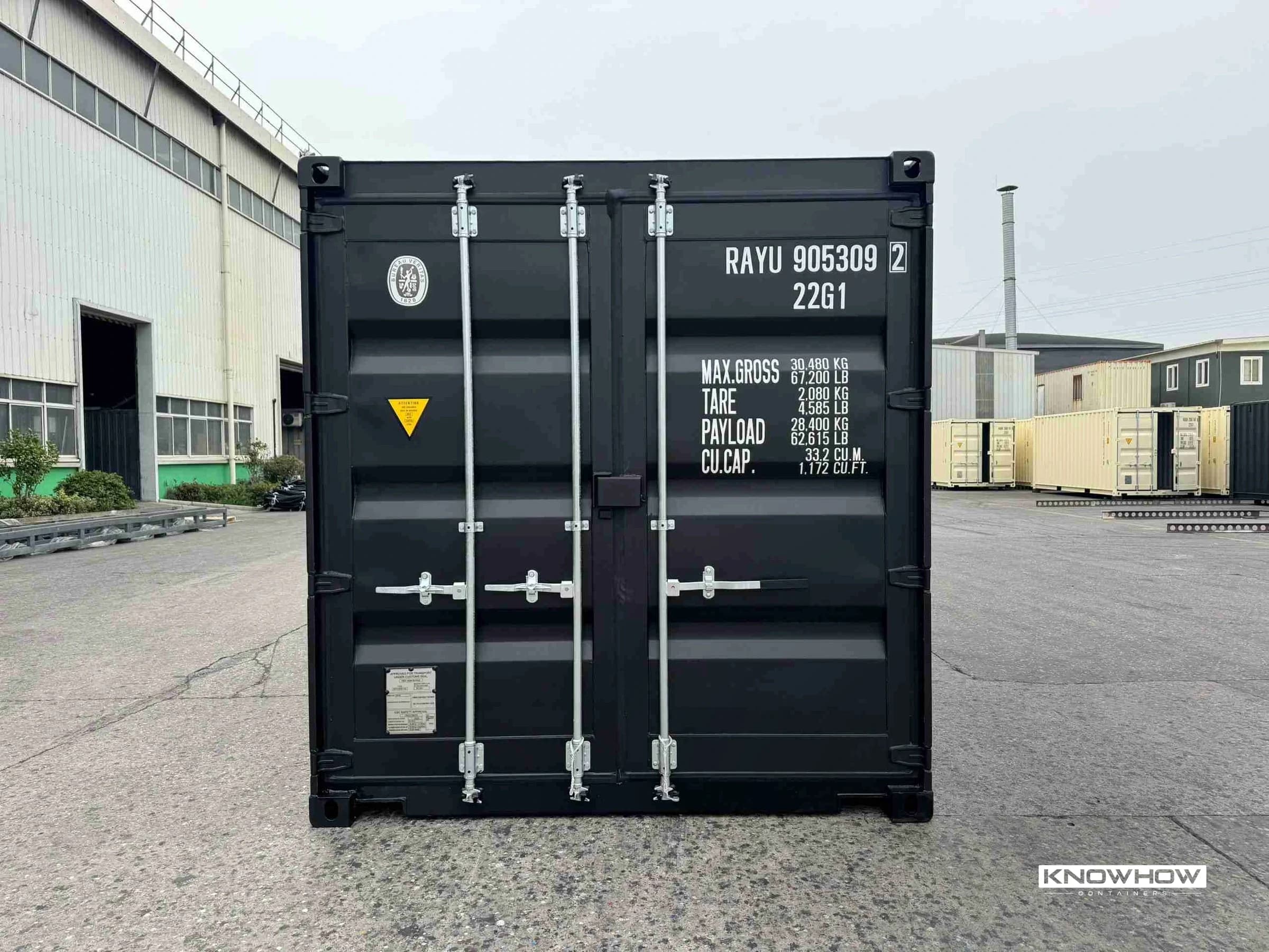

Front view of a 20ft dry van shipping container in RAL 9005 jet black, showing double cargo doors with locking bars, hinges, and handles, with CSC plate and weight markings visible.
One Trip20DV-22G1-S01

General Purpose

20ft Dry Van Container — ISO 22G1 — One Trip

One-trip general-purpose dry van with bamboo-composite floor, double cargo doors with lockbox, and forklift pockets. The standard all-rounder for transport, storage, and conversions when no specialist floor or cargo restraint is required.

External dimensions

Length

6,058 mm

Width

2,438 mm

Height

2,591 mm

Tare Weight

2,080 kg

Max Payload

28,400 kg

Max Gross Weight

30,480 kg

Internal Volume

33.2 m³

Applications

Self-storage, Site storage, General cargo, Palletised cargo, International shipping, Temporary warehousing, Inventory overflow

Applicable standards

ISO 668 · ISO 1161 · ISO 1496-1 · ISO 6346

Request quoteOpen technical specification
图片压缩 微信 2025 0313152717
One Trip20DV-22G1-LR-S01

General Purpose

20ft Dry Van Moving Container — ISO 22G1 — One Trip

One-trip 20ft dry van with four wall-mounted lashing rails for securing furniture and mixed loads during removals and logistics. Double cargo doors with easy-open locking bars and bamboo-composite floor.

External dimensions

Length

6,058 mm

Width

2,438 mm

Height

2,591 mm

Tare Weight

2,080 kg

Max Payload

28,400 kg

Max Gross Weight

30,480 kg

Internal Volume

33.2 m³

Applications

Self-storage, Site storage, General cargo, Palletised cargo, International shipping, Temporary warehousing, Inventory overflow

Applicable standards

ISO 668 · ISO 1161 · ISO 1496-1 · ISO 6346

Request quoteOpen technical specification

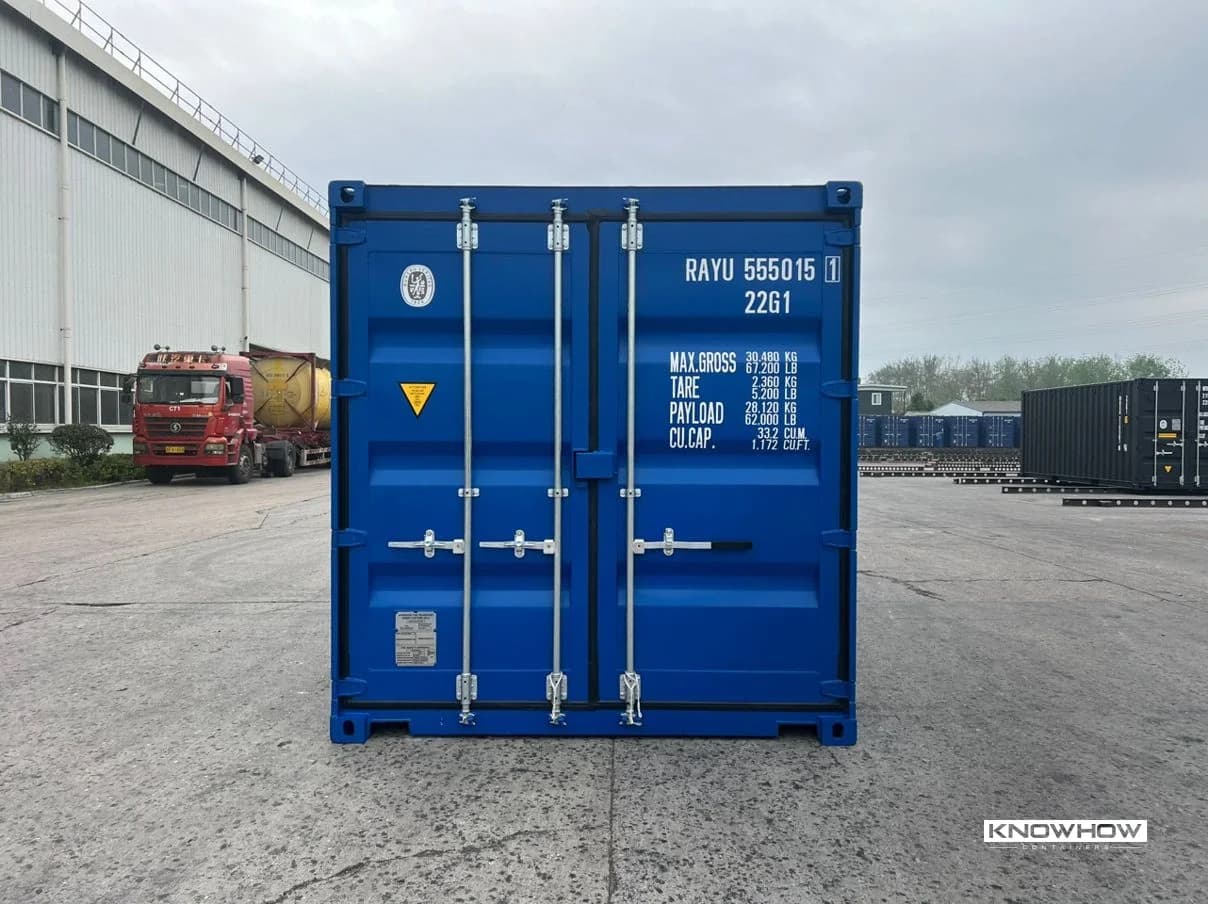

20ft zeecontainer traanplaat stalen vloer RAL5010 links deuren
One Trip20DV-22G1-SF-S01

General Purpose

20ft Dry Van Steel Floor Container — ISO 22G1 — One Trip

One-trip 20ft dry van with steel checker-plate floor for heavy forklift traffic, rolling loads, and non-absorbent cargo handling. ISO 22G1 with double cargo doors, lockbox, and ten vents.

External dimensions

Length

6,058 mm

Width

2,438 mm

Height

2,591 mm

Tare Weight

2,360 kg

Max Payload

28,120 kg

Max Gross Weight

30,480 kg

Internal Volume

33.4 m³

Applications

Self-storage, Site storage, General cargo, Palletised cargo, International shipping, Temporary warehousing, Inventory overflow

Applicable standards

ISO 668 · ISO 1161 · ISO 1496-1 · ISO 6346

Request quoteOpen technical specification

Specification comparison

Compare 20ft Dry Van Container builds

Compare the exact dimensions, usable opening, capacity, and weight values recorded for every published specification in this family.

Family nominal external:Length6,058 mmWidth2,438 mmHeight2,591 mm

20ft Dry Van Container — ISO 22G1 — One Trip

20DV-22G1-S01

Exact external dimensions

Length6,058 mm19' 10.5"
Width2,438 mm8' 0"
Height2,591 mm8' 6"

Internal dimensions

Length5,898 mm19' 4.2"
Width2,352 mm7' 8.6"
Height2,393 mm7' 10.2"

Door opening

Front cargo doors width2,340 mm7' 8.1"
Front cargo doors height2,280 mm7' 5.8"

Capacity & weights

Internal volume33.2 m³1,172.4 ft³
Max gross30,480 kg67,197 lbs
Payload28,400 kg62,611 lbs
Tare2,080 kg4,586 lbs

Metric values are shown first, with imperial conversions alongside. “Not specified” means the value has not been published for that exact build.
