Know How Container Reference

10ft Dry Van Container

ISO nominal size

Length

10FT

2.99 m

Width

8FT

2.44 m

Height

8FT 6IN

2.59 m

Description

The 10ft Dry Van Container family provides compact, general-purpose freight and storage solutions for space-constrained sites. Active specifications include ISO 12GB one-trip units measuring 2,991 mm × 2,438 mm × 2,591 mm externally, with tare weights around 1,250 kg and payload capacities up to 10,000 kg. The family serves six applications: site storage, self-storage, equipment storage, construction site storage, parts and spares storage, and last-mile logistics. These units offer secure, portable capacity where standard 20ft or 40ft containers are impractical.

Request quote

Available specifications

Exact stock records for this family

Open a technical specification when you need exact technical data, ISO code, dimensions, weight limits, standards, and stock-specific build details.

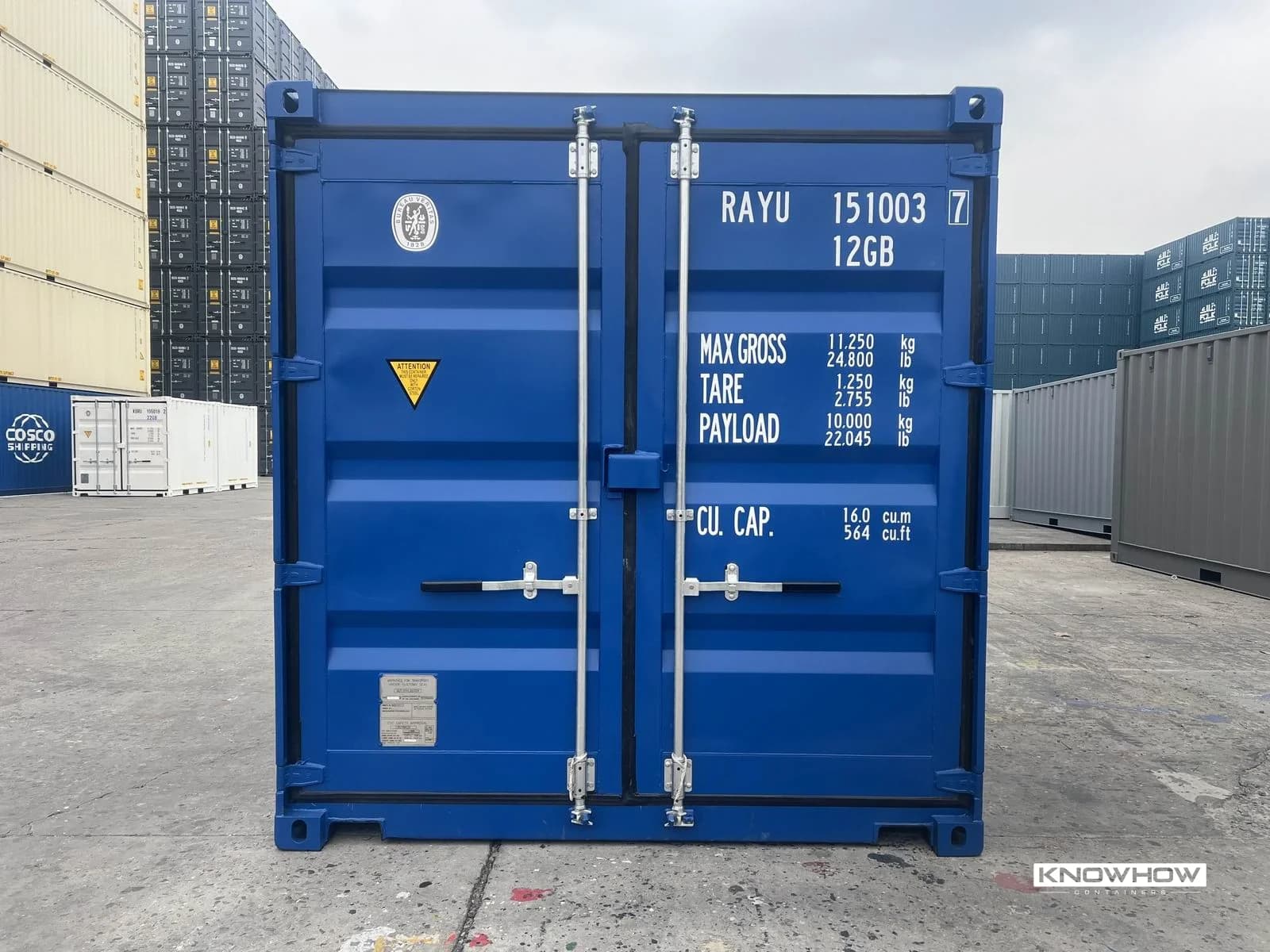

Blue 10ft dry van container door end view showing locking bars, hinges, and CSC plate with weight markings in a depot yard.

One Trip10DV-12GB-S01

General Purpose

10ft Dry Van Container — ISO 12GB — One Trip

One-trip 10ft dry van with bamboo-composite floor, front double cargo doors with lockbox, and forklift pockets for routine transport, site storage, and last-mile logistics.

External dimensions

Length

2,991 mm

Width

2,438 mm

Height

2,591 mm

Tare Weight

1,250 kg

Max Payload

10,000 kg

Max Gross Weight

11,250 kg

Internal Volume

16 m³

Applications

Self-storage, Site storage, Equipment storage, Last-mile logistics, Construction site storage, Parts and spares storage

Applicable standards

ISO 668 · ISO 1161 · ISO 1496-1 · ISO 6346

Request quote Open technical specification

General Purpose

One Trip10DV-12GB-S01

10ft Dry Van Container — ISO 12GB — One Trip

One-trip 10ft dry van with bamboo-composite floor, front double cargo doors with lockbox, and forklift pockets for routine transport, site storage, and last-mile logistics.

Exact technical specification

External dimensions

Internal dimensions

Max Gross Weight11,250 kg

Internal Volume16 m³

Applications

Self-storage, Site storage, Equipment storage, Last-mile logistics, Construction site storage, Parts and spares storage

Applicable standards

ISO 668 · ISO 1161 · ISO 1496-1 · ISO 6346

Request quoteOpen technical specification

Specification comparison

Compare 10ft Dry Van Container builds

Compare the exact dimensions, usable opening, capacity, and weight values recorded for every published specification in this family.

Family nominal external:Length2,991 mmWidth2,438 mmHeight2,591 mm

Specification to view

10ft Dry Van Container — ISO 12GB — One Trip

10DV-12GB-S01

Exact external dimensions

Length2,991 mm9' 9.8"

Width2,438 mm8' 0"

Height2,591 mm8' 6"

Internal dimensions

Length2,840 mm9' 3.8"

Width2,350 mm7' 8.5"

Height2,393 mm7' 10.2"

Door opening

Front cargo doors width2,342 mm7' 8.2"

Front cargo doors height2,280 mm7' 5.8"

Capacity & weights

Internal volume16 m³565 ft³

Max gross11,250 kg24,802 lbs

Payload10,000 kg22,046 lbs

Tare1,250 kg2,756 lbs

Measurement	10ft Dry Van Container — ISO 12GB — One Trip10DV-12GB-S01
Exact external dimensions
Length	2,991 mm9' 9.8"
Width	2,438 mm8' 0"
Height	2,591 mm8' 6"
Internal dimensions
Length	2,840 mm9' 3.8"
Width	2,350 mm7' 8.5"
Height	2,393 mm7' 10.2"
Door opening
Front cargo doors width	2,342 mm7' 8.2"
Front cargo doors height	2,280 mm7' 5.8"
Capacity & weights
Internal volume	16 m³565 ft³
Max gross	11,250 kg24,802 lbs
Payload	10,000 kg22,046 lbs
Tare	1,250 kg2,756 lbs

Metric values are shown first, with imperial conversions alongside. “Not specified” means the value has not been published for that exact build.

Compare the catalog

Compare container families

Compare the dimensions and ratings that matter before opening the complete family reference. More catalog options will be added here.

Compare current family with

Current

10ft Dry Van Container

Comparing

20ft Dry Van Container

Container type

Dry Van

Nominal external

Different

2,991 × 2,438 × 2,591 mm

6,058 × 2,438 × 2,591 mm

ISO size code

Different

12GB

22G1

Exact external

Different

2,991 × 2,438 × 2,591 mm

6,058 × 2,438 × 2,591 mm

Internal dimensions

Different

2,840 × 2,350 × 2,393 mm

5,898 × 2,352 × 2,393 mm

Door opening

Different

Front cargo doors: 2,342 × 2,280 mm

Front cargo doors: 2,340 × 2,280 mm

Internal volume

Different

16 m³

33.2 m³

Tare weight

Different

1,250 kg

2,080 kg

Payload

Different

10,000 kg

28,400 kg

Max gross weight

Different

11,250 kg

30,480 kg

Primary application

Self-storage

Explore 20ft Dry Van Container

	Current family 10ft Dry Van Container	Compare 20ft Dry Van Container Explore family	Compare 20ft High Cube Container Explore family	Add size Add a container
Container type	Dry Van	Dry Van	High Cube	—
Nominal external	2,991 × 2,438 × 2,591 mm	6,058 × 2,438 × 2,591 mm	6,058 × 2,438 × 2,896 mm	—
ISO size code	12GB	22G1	25G1	—
Exact external	2,991 × 2,438 × 2,591 mm	6,058 × 2,438 × 2,591 mm	6,058 × 2,438 × 2,896 mm	—
Internal dimensions	2,840 × 2,350 × 2,393 mm	5,898 × 2,352 × 2,393 mm	5,898 × 2,352 × 2,698 mm	—
Door opening	Front cargo doors: 2,342 × 2,280 mm	Front cargo doors: 2,340 × 2,280 mm	Front cargo doors: 2,340 × 2,585 mm	—
Internal volume	16 m³	33.2 m³	37.43 m³	—
Tare weight	1,250 kg	2,080 kg	2,150 kg	—
Payload	10,000 kg	28,400 kg	28,330 kg	—
Max gross weight	11,250 kg	30,480 kg	30,480 kg	—
Primary application	Self-storage	Self-storage	Equipment storage	—
