SKU · 20HC-25G1-SF-S01
20ft High Cube Steel Floor Container
Description
This one-trip 20ft high-cube general-purpose container adds 2896 mm of external height for extra cubic capacity above a standard box. Corrugated Corten steel walls and roof enclose a steel checker-plate floor, with ten vents along the structure. Front double cargo doors span 2340 mm wide by 2580 mm high and include easy-open locking bars plus a lockbox. Forklift pockets assist handling. The unit carries a 2370 kg tare, 28110 kg payload, and 30480 kg maximum gross mass.
At a glance
Specification overview
Review the published dimensions, capacity, door configuration and construction details for 20ft High Cube Steel Floor Container (20HC-25G1-SF-S01). Every value shown belongs to this exact build.
What distinguishes this specification
20ft High Cube Steel Floor Container is distinguished by its steel checker-plate floor, which provides a durable, easy-to-clean loading surface for heavy or frequently handled cargo. It pairs this with double cargo doors, easy-open locking bars and a lockbox. The configuration is a practical specialist choice for storage and transport work that needs a steel loading surface.
- External size
- 6,058 × 2,438 × 2,896 mm
- Internal volume
- 37.43 m³
- Payload
- 28,110 kg
- Tare
- 2,370 kg
- Door opening
- 2,340 × 2,580 mm
- CSC design
- yes
Dimensions reference
Exact measurements
These values belong to this specification record. Family pages can show nominal size; this page shows the actual specification measurements.
Exterior views

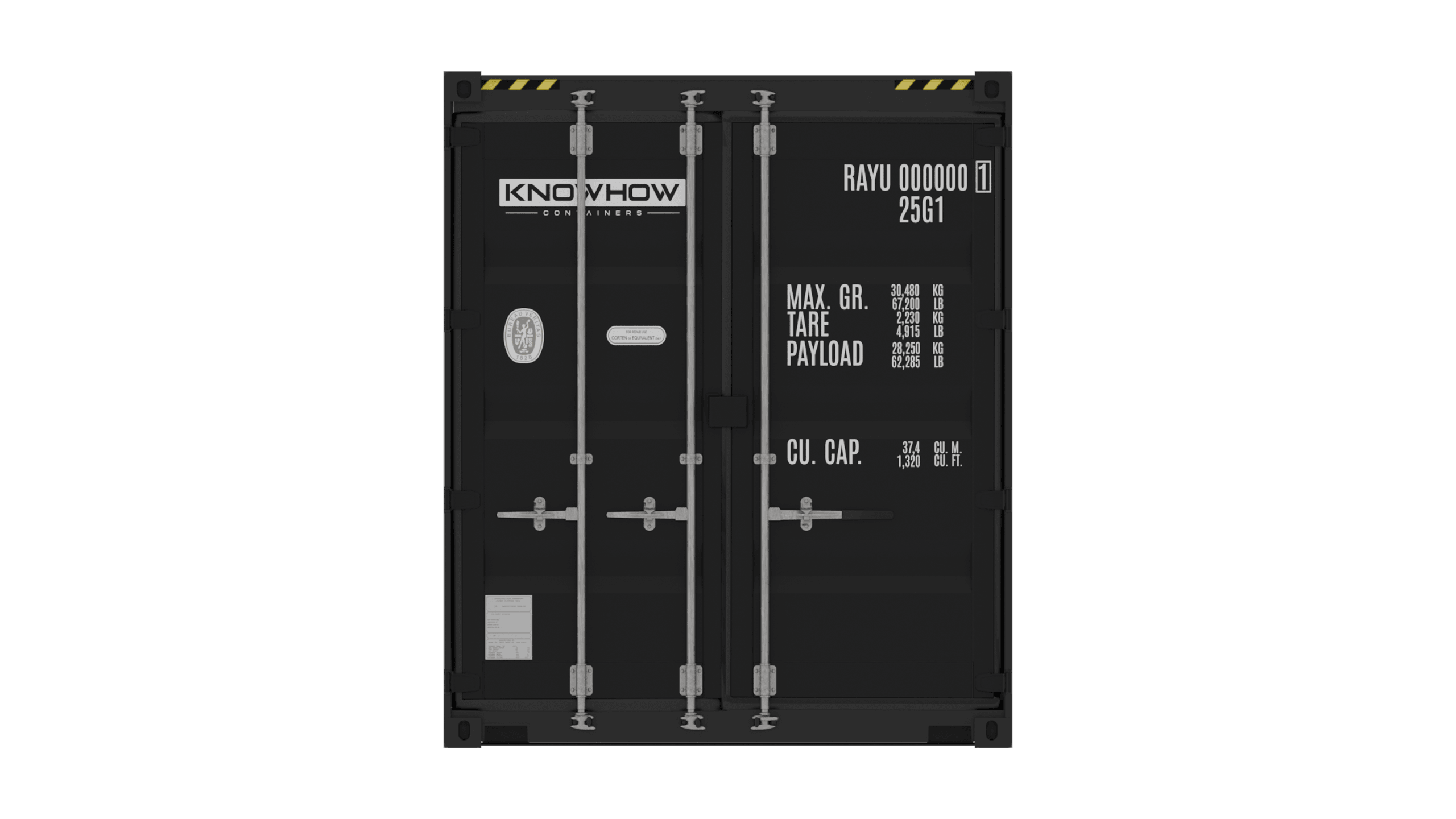

Front elevation

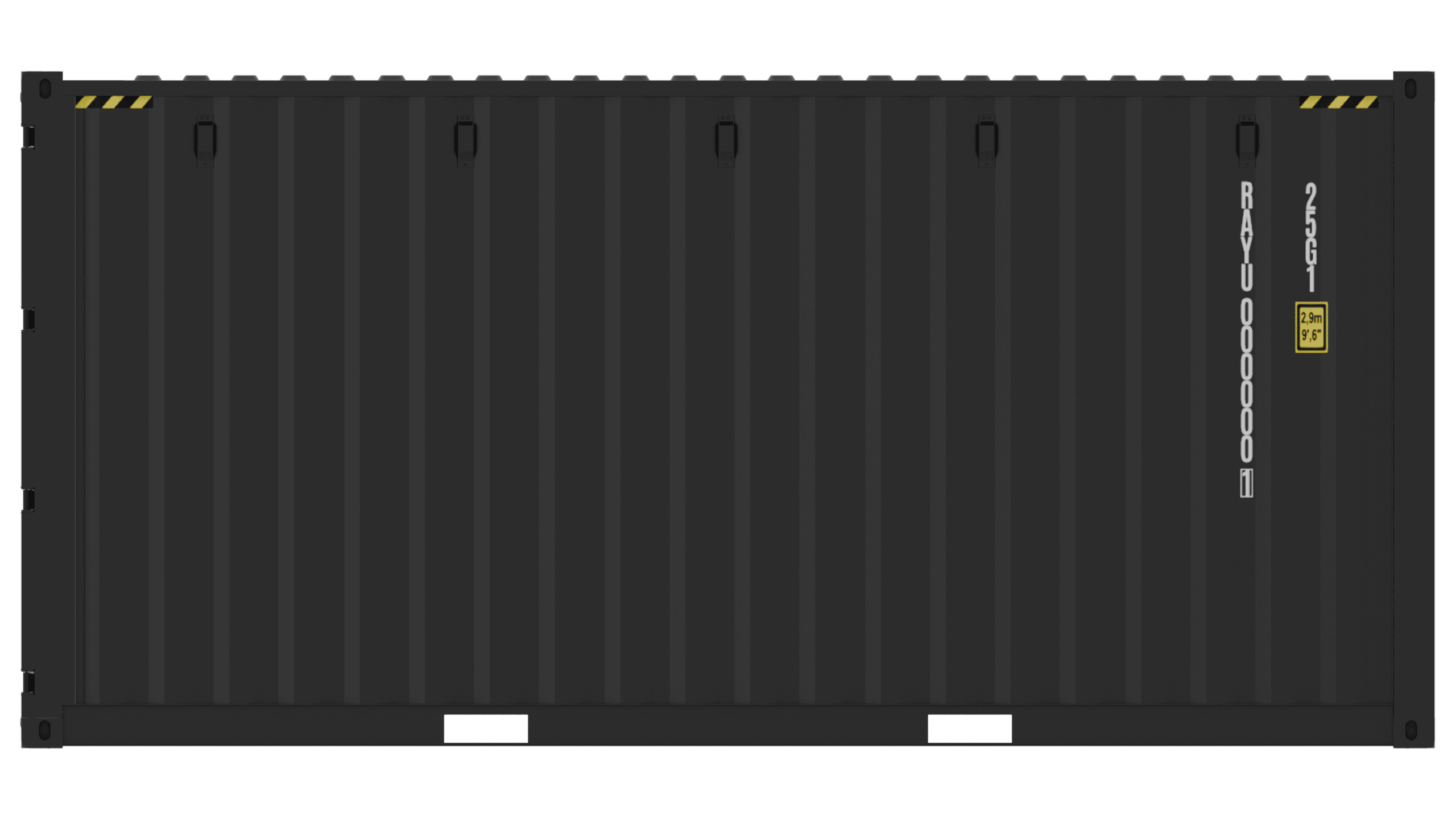

Side elevation
Measurement set
External dimensions
Published values for this technical specification.
MetricImperial
Length6,058 mm19' 10.5"
Width2,438 mm8' 0"
Height2,896 mm9' 6"
Interior access

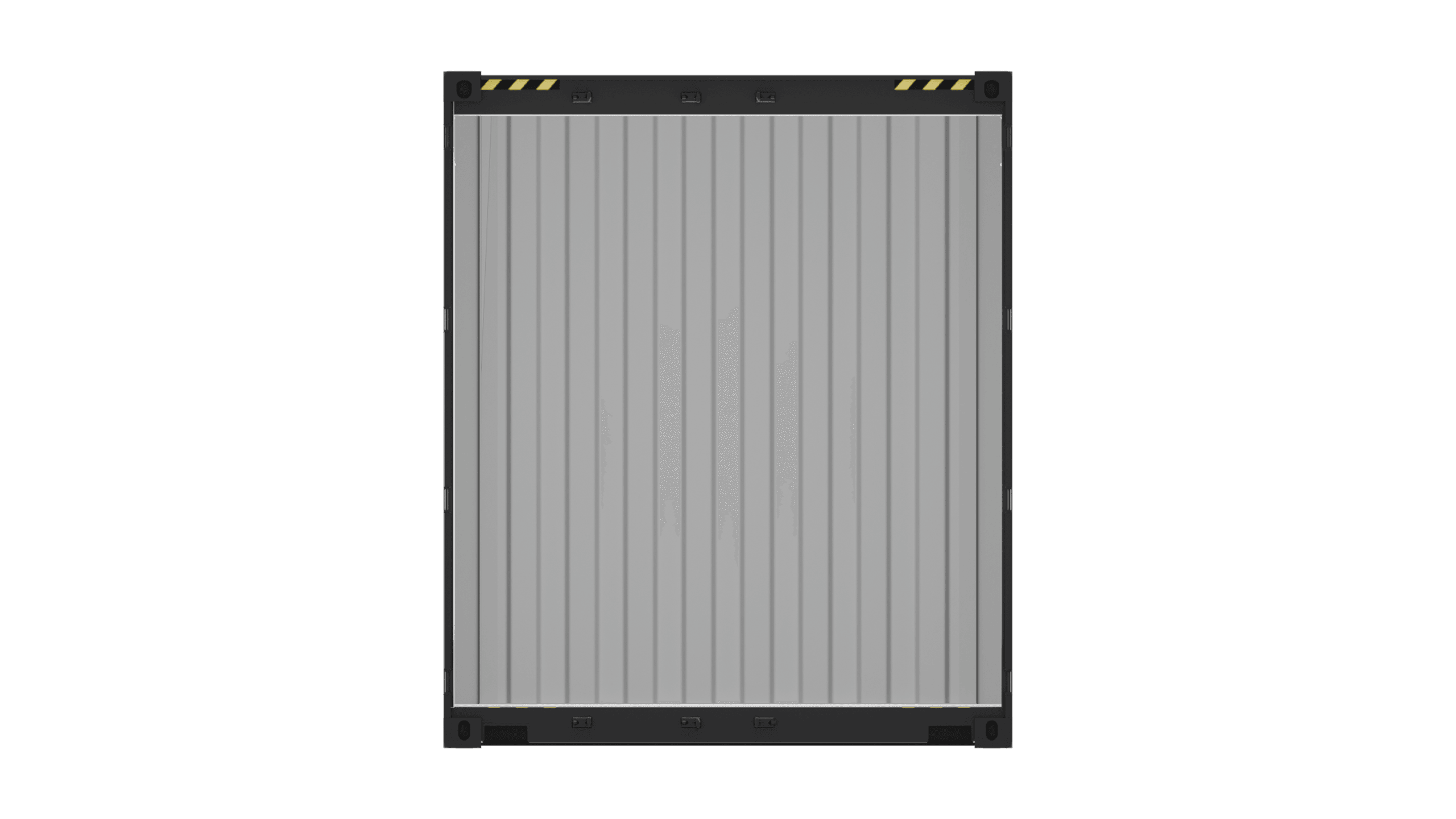

Door opening

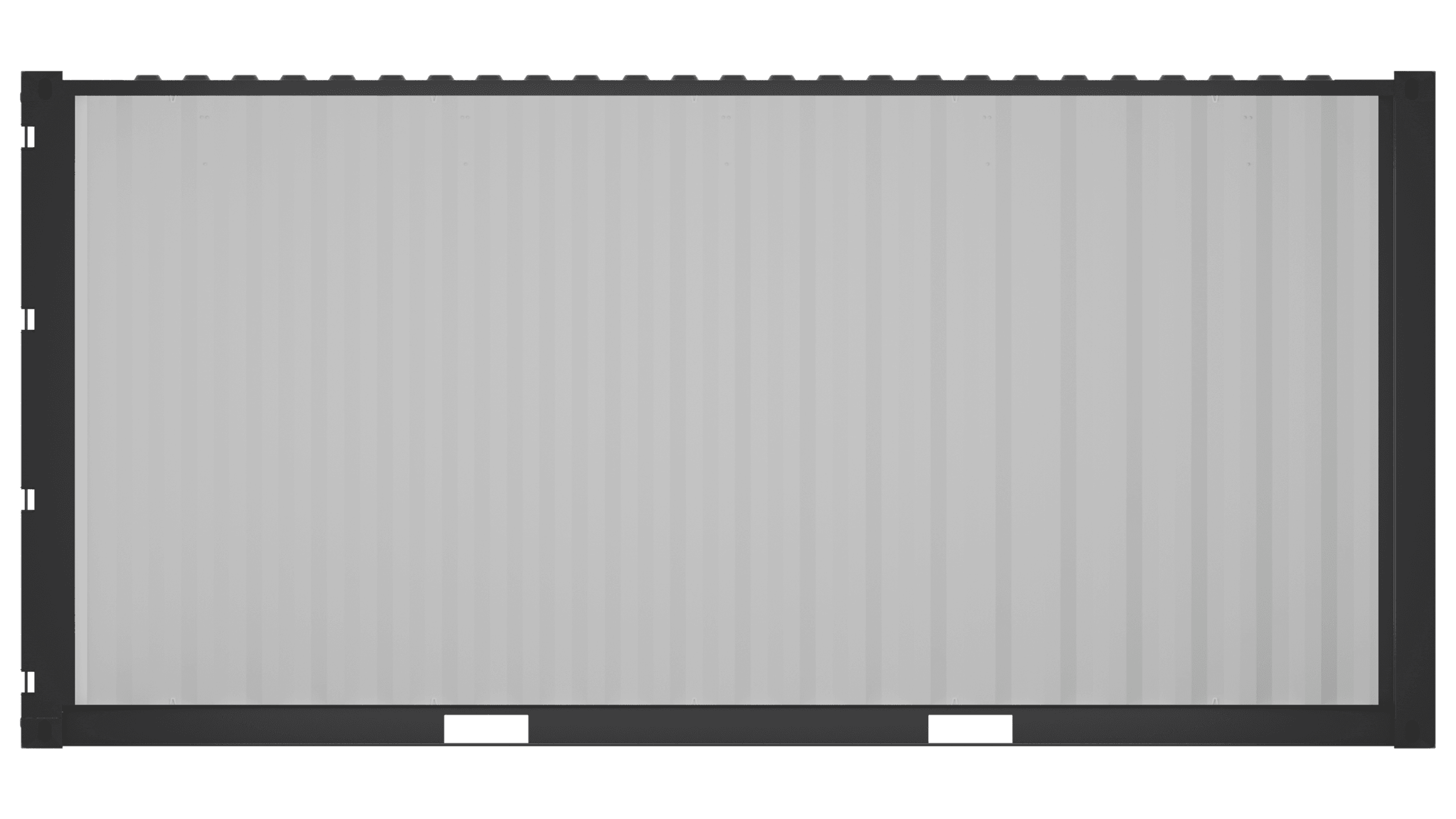

Interior side
Measurement set
Internal dimensions
Published values for this technical specification.
MetricImperial
Length5,898 mm19' 4.2"
Width2,352 mm7' 8.6"
Height2,698 mm8' 10.2"
Measurement set
Door opening
Front cargo doors · front · Double cargo doors with easy-open locking bars
MetricImperial
Width2,340 mm7' 8.1"
Height2,580 mm8' 5.6"
Sill height167 mm0' 6.6"
Measurement set
Forklift pockets
Paired openings visible on both sides.
MetricImperial
Opening width360 mm1' 2.2"
Opening height117 mm0' 4.6"
Center distance2,080 mm6' 9.9"
Measurement set
Capacity & weights
Published values for this technical specification.
MetricImperial
Internal volume37.43 m³1,321.8 ft³
Max gross30,480 kg67,197 lbs
Payload28,110 kg61,972 lbs
Tare2,370 kg5,225 lbs
Applications
Applications for 20ft High Cube Steel Floor Container
The strongest use cases for this specification, based on its configuration and published selection criteria.
Best fit
Heavy rolling loads
The steel checker-plate floor is designed for durable handling of wheeled equipment and rolling cargo, subject to rated floor and axle loads.
Selection criterion
Moisture-resistant flooring
Unlike a timber or bamboo-composite floor, the steel surface does not absorb moisture; coating condition, drainage, and corrosion control remain important.
Selection criterion
Non-absorbent floor surface
The steel checker-plate surface is non-absorbent, making it better suited to damp equipment and packaged liquids than a timber-based floor.
Selection criterion
High wear resistance
The steel checker-plate floor provides a hard-wearing surface for intensive loading and repeated operational use.
Selection criterion
Reduced-combustible floor surface
The steel floor removes timber or bamboo floor material from the loading surface where reduced combustible content is a selection priority.
Selection criterion
Cargo restraint
Standard floor-level lashing rings provide restraint points for securing general cargo during transport; use certified equipment and remain within the marked lashing capacity.
Application
Equipment storage
Storage for tools, machinery, and operational equipment.
Selection criterion
Frequent relocation
ISO freight construction, corner castings, and the Corten-steel shell are designed for repeated lifting, transport, and redeployment. On white variants, the PU coating adds paint durability that helps the container remain presentable.
Application
General cargo
Transport and storage of general dry cargo.
Application
Palletised cargo
Transport and storage of palletised goods and unitised freight.
Application
International shipping
Cross-border and intercontinental transport using ISO freight containers.
Selection criterion
Heavy point loads
Steel flooring is a stronger starting point for concentrated machinery loads, but point loads still require confirmation against the floor rating and may need load-spreading plates.
Application
High-volume storage
Storage where additional internal height and cubic capacity are important.
Application
Temporary warehousing
Flexible short- or medium-term warehousing without constructing a permanent building.
Application
Inventory overflow
Additional capacity for seasonal stock, production peaks, and warehouse overflow.
Selection criterion
Easy spill cleanup
The non-absorbent steel surface can be wiped or washed after minor leaks and spills, subject to safe containment and disposal procedures.
Construction
Build details
The family baseline describes the shared container design; specification values identify this exact configuration.
Family baseline
20ft High Cube Container
A 20ft high cube container for storage and transport where extra height is useful.
20HC · High Cube · 6,058 × 2,438 × 2,896 mm · iso nominal
View the 20ft High Cube Container familyExact specification
20ft High Cube Steel Floor Container
- Specification code
- 20HC-25G1-SF-S01
- ISO size/type
- 25G1
- Configuration
- SF
- Commercial condition
- one trip
- Introduced
- 2024
Published construction attributes
Construction group
Floor strength
- Concentrated floor load
- Tested with 5,460 kg truck load
- Total wheel contact area
- 284 cm² · 180 mm wheel width
- Wheel centre spacing
- 760 mm
- Distributed floor load
- 1.8R - T uniform load; maximum 6 mm base deflection
- Evidence reference
- 070YS25G1G
Construction group
Access
- Location
- front
- Door type
- Double cargo doors with easy-open locking bars
- Opening
- 2,340 × 2,580 mm
- Sill height
- 167 mm
- Lockbox
- Yes
Construction group
Handling
- Forklift pocket access
- Both sides
- Pocket opening
- 360 × 117 mm
- Pocket center distance
- 2,080 mm
Construction group
Construction
- Floor material
- Steel checker plate
- Wall material
- Corrugated Corten steel
- Roof material
- Corrugated Corten steel
- Gooseneck tunnel
- No
- Vent count
- 10 vents
Standards and approval
Applicable standards and CSC approval
Published design claims, assessment status, and approval references for this specification.
Standard
ISO 668
Series 1 freight containers — Classification, dimensions and ratings
- Applicability
- applicable
- Assessment
- CSC-supported
Standard
ISO 1161
Series 1 freight containers — Corner and intermediate fittings — Specifications
- Applicability
- applicable
- Assessment
- CSC-supported
Standard
ISO 1496-1
Series 1 freight containers — Specification and testing — Part 1: General cargo containers for general purposes
- Applicability
- applicable
- Assessment
- CSC-supported
Standard
ISO 6346
Freight containers — Coding, identification and marking
- Applicability
- applicable
- Assessment
- compatibility claimed
Applicable to container identification, size/type coding, and permanent markings. Coding applicability does not establish structural compliance.
Convention approval
CSC design approval
- Design approved
- yes
- Approval basis
- type approval
- Plate supplied
- yes
- Examination scheme
- assigned per unit
Technical questions
Frequently checked details
Direct answers based on the published values in this specification record.
This SF configuration suits equipment storage, general cargo, palletised freight, international shipping, high-volume storage, temporary warehousing, and inventory overflow. The steel checker-plate floor makes it a best fit for forklift traffic, heavy rolling loads, moisture-resistant needs, non-absorbent surfaces, high wear resistance, and reduced-combustible requirements.
Internal length is 5898 mm, width 2352 mm, and height 2698 mm. The front double cargo doors open 2340 mm wide by 2580 mm high with easy-open locking bars and a lockbox. Forklift pockets are fitted for handling.
Tare weight is 2370 kg, payload is 28110 kg, and maximum gross mass is 30480 kg. These are the published container weight values; road, rail, vessel, axle, and route limits are separate operational considerations.
The SF configuration substitutes a steel checker-plate floor for the standard timber or bamboo floor, adding durability for heavy and frequent loading. The LR moving container carries lashing rails for furniture and equipment restraint instead. Both share the same 6058 mm by 2438 mm by 2896 mm external dimensions and front double cargo door layout as the base 20HC-25G1-S01, though the SF's tare is higher and payload slightly lower at 28110 kg versus 28330 kg.
Design approval is held under type approval, and plates are supplied with an assigned-per-unit examination scheme. The individual unit's current plate and examination status must be checked before shipping use.
Small quantities can be repainted in a requested color. Larger production batches can be ordered in specific colors and can include project or company branding, subject to order requirements and confirmation.
The steel checker-plate floor is a stronger starting point for concentrated loads, but heavy point loads still require confirmation against the floor rating and may need load-spreading plates. Standard floor-level lashing rings provide restraint points; use certified equipment and remain within marked lashing capacity.

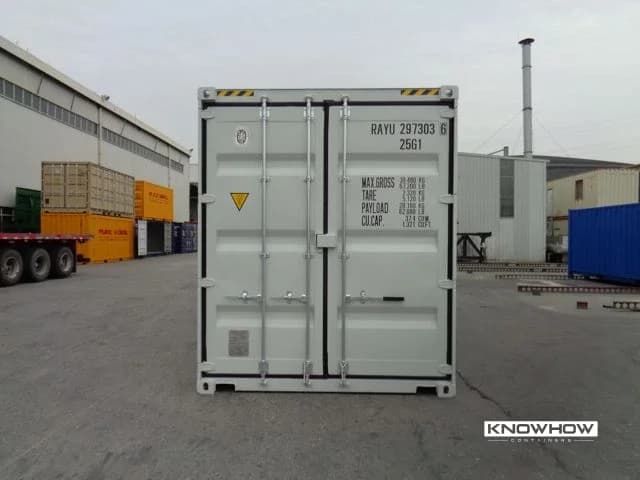

Photo library
