Selection criterion
Cargo restraint
Standard floor-level lashing rings provide restraint points for securing general cargo during transport; use certified equipment and remain within the marked lashing capacity.
SKU · 10DV-12GB-S01
10ft Dry Van Container
Description
This 10ft Dry Van Container is a one-trip general-purpose unit built to ISO 12GB with an external length of 2991 mm, width of 2438 mm, and height of 2591 mm. The Corten steel corrugated walls and roof enclose an internal volume with 2840 mm length, 2350 mm width, and 2393 mm height. The bamboo-composite floor supports a tare of 1250 kg and a payload of 8910 kg, reaching 10160 kg maximum gross weight. Front double cargo doors with easy-open locking bars and a lockbox provide access through a 2342 mm wide by 2280 mm high opening. Forklift pockets, four vents, and ISO-compliant corner castings support handling and transport.
At a glance
Specification overview
Review the published dimensions, capacity, door configuration and construction details for 10ft Dry Van Container (10DV-12GB-S01). Every value shown belongs to this exact build.
What distinguishes this specification
This 10ft dry van is the family's general-purpose starting point, with a bamboo-composite floor, 1250 kg tare, 8910 kg payload, and 10160 kg max gross. It carries double cargo doors with easy-open locking bars and a lockbox. The standard ISO construction suits routine transport, site storage, and last-mile logistics without a specialist configuration.
- External size
- 2,991 × 2,438 × 2,591 mm
- Internal volume
- 16 m³
- Payload
- 10,000 kg
- Tare
- 1,250 kg
- Door opening
- 2,342 × 2,280 mm
- CSC design
- yes
Dimensions reference
Exact measurements
These values belong to this specification record. Family pages can show nominal size; this page shows the actual specification measurements.
Exterior views

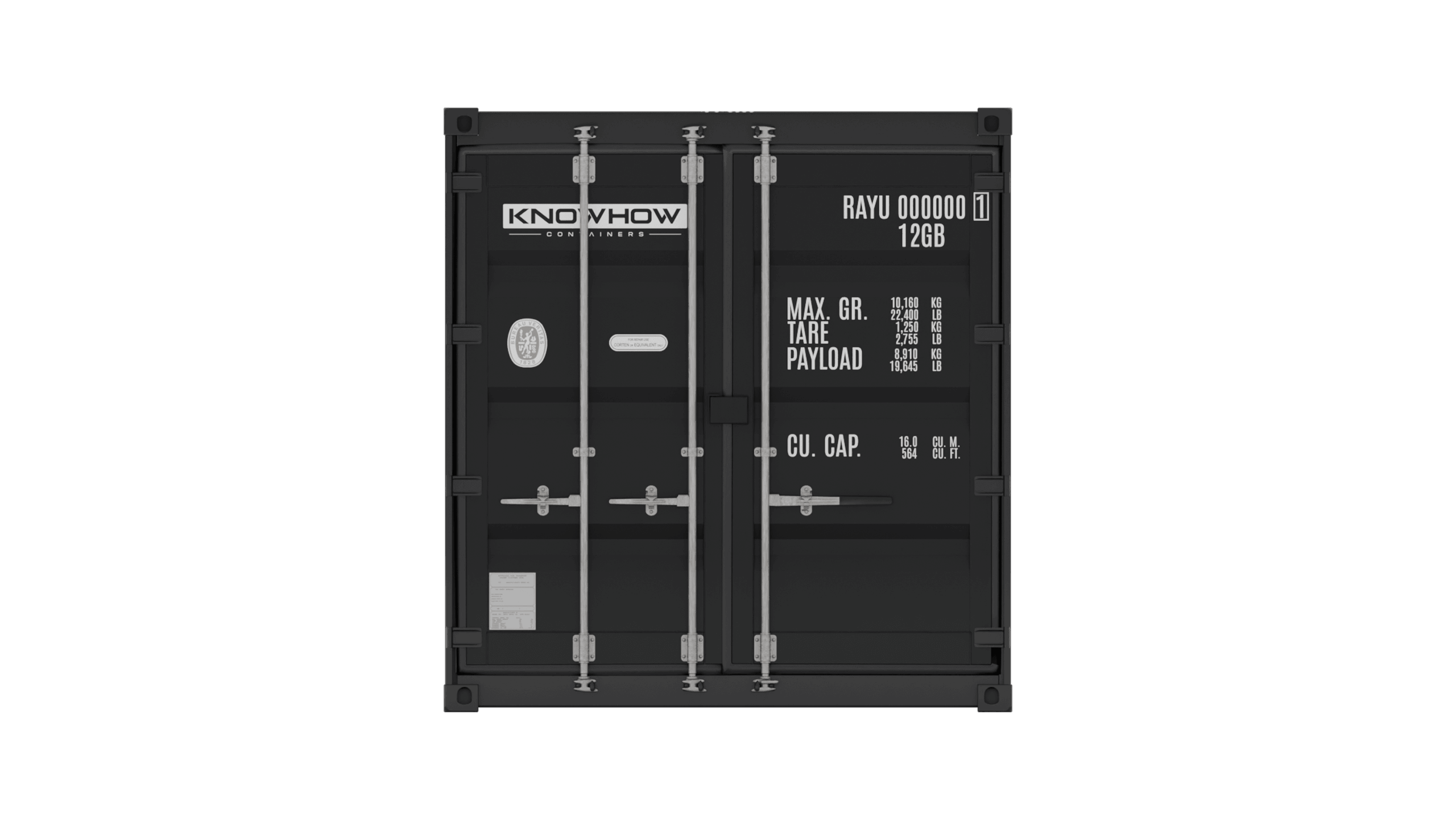

Front elevation

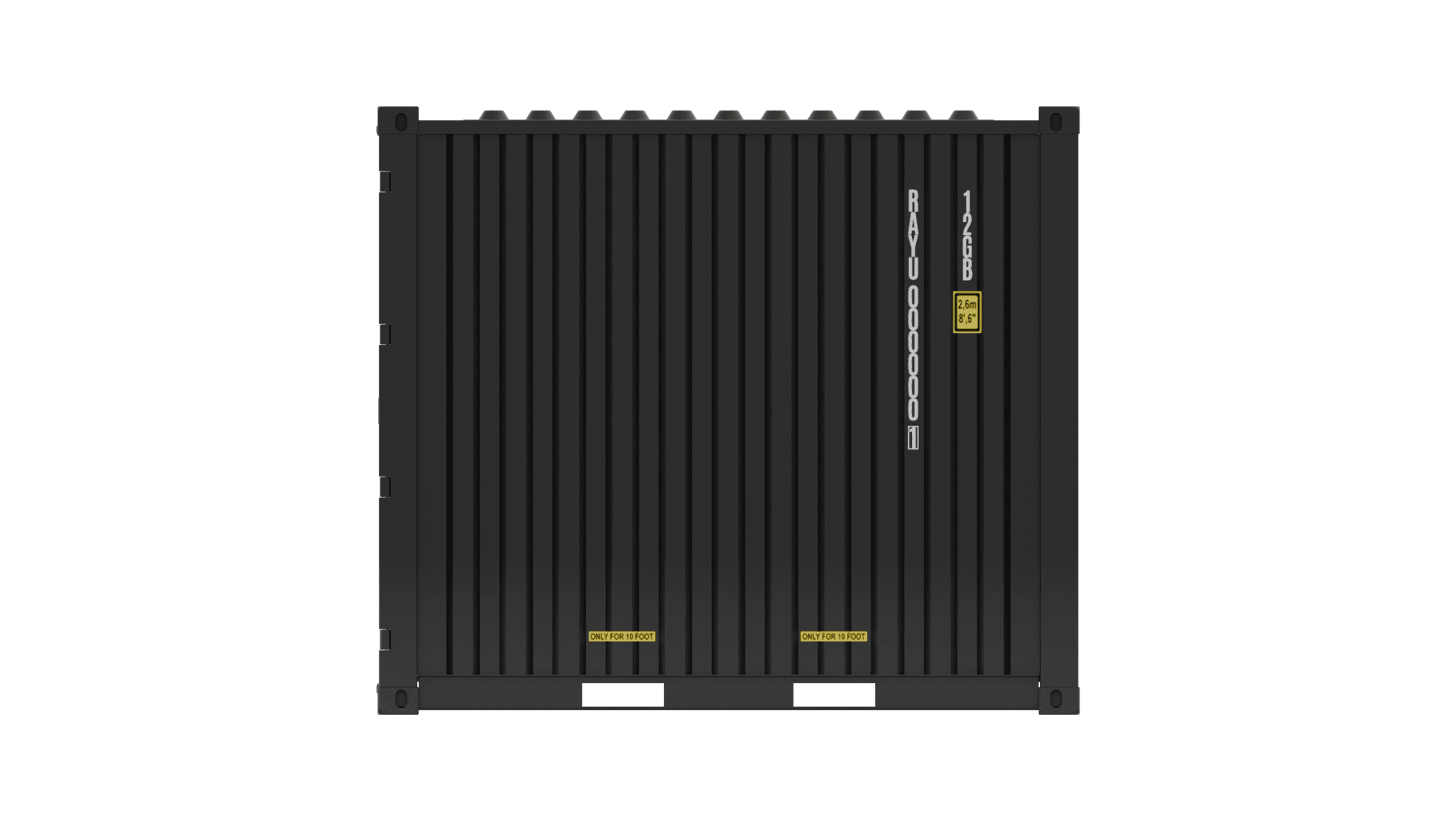

Side elevation
Measurement set
External dimensions
Published values for this technical specification.
MetricImperial
Length2,991 mm9' 9.8"
Width2,438 mm8' 0"
Height2,591 mm8' 6"
Interior access

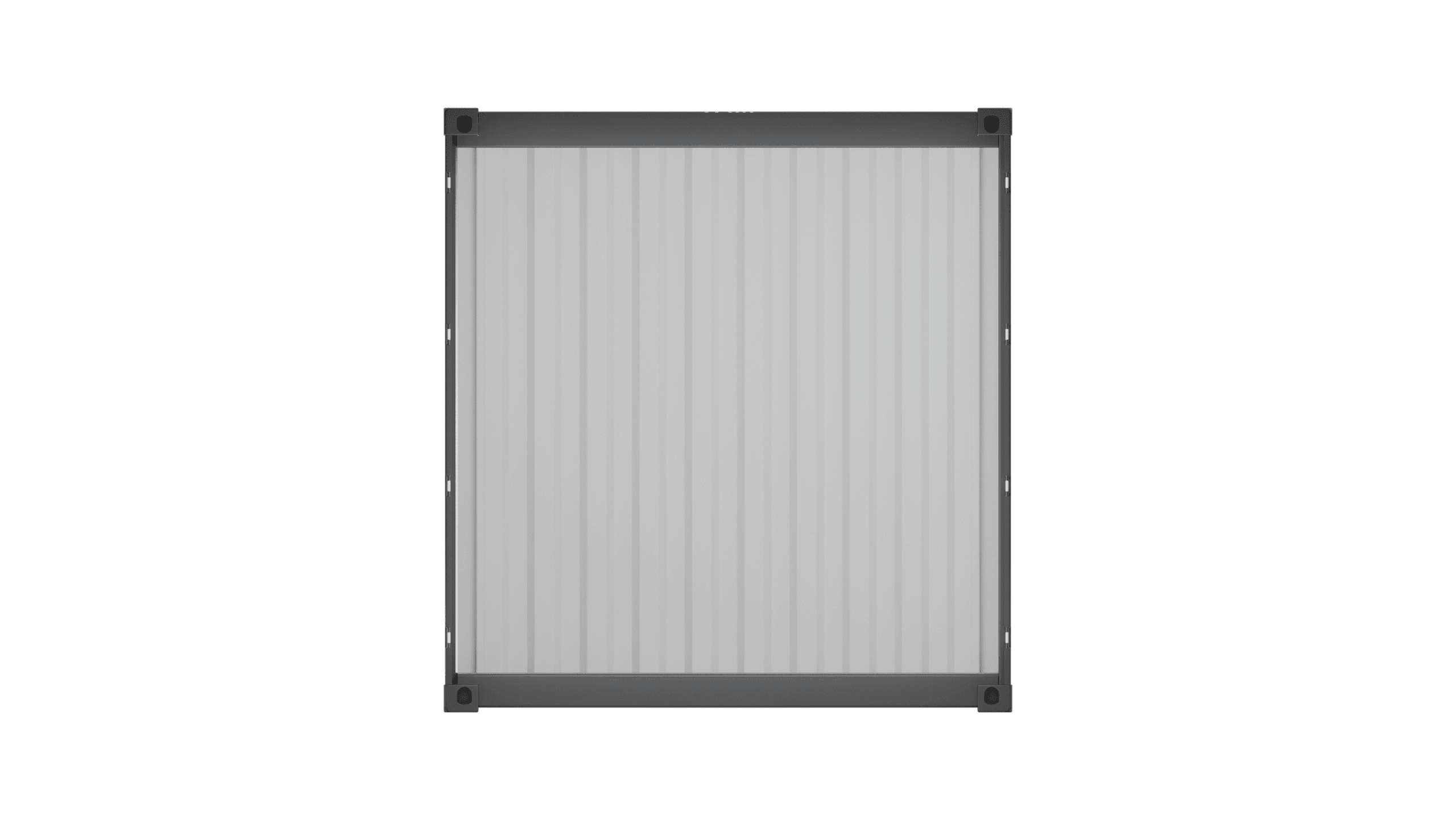

Door opening

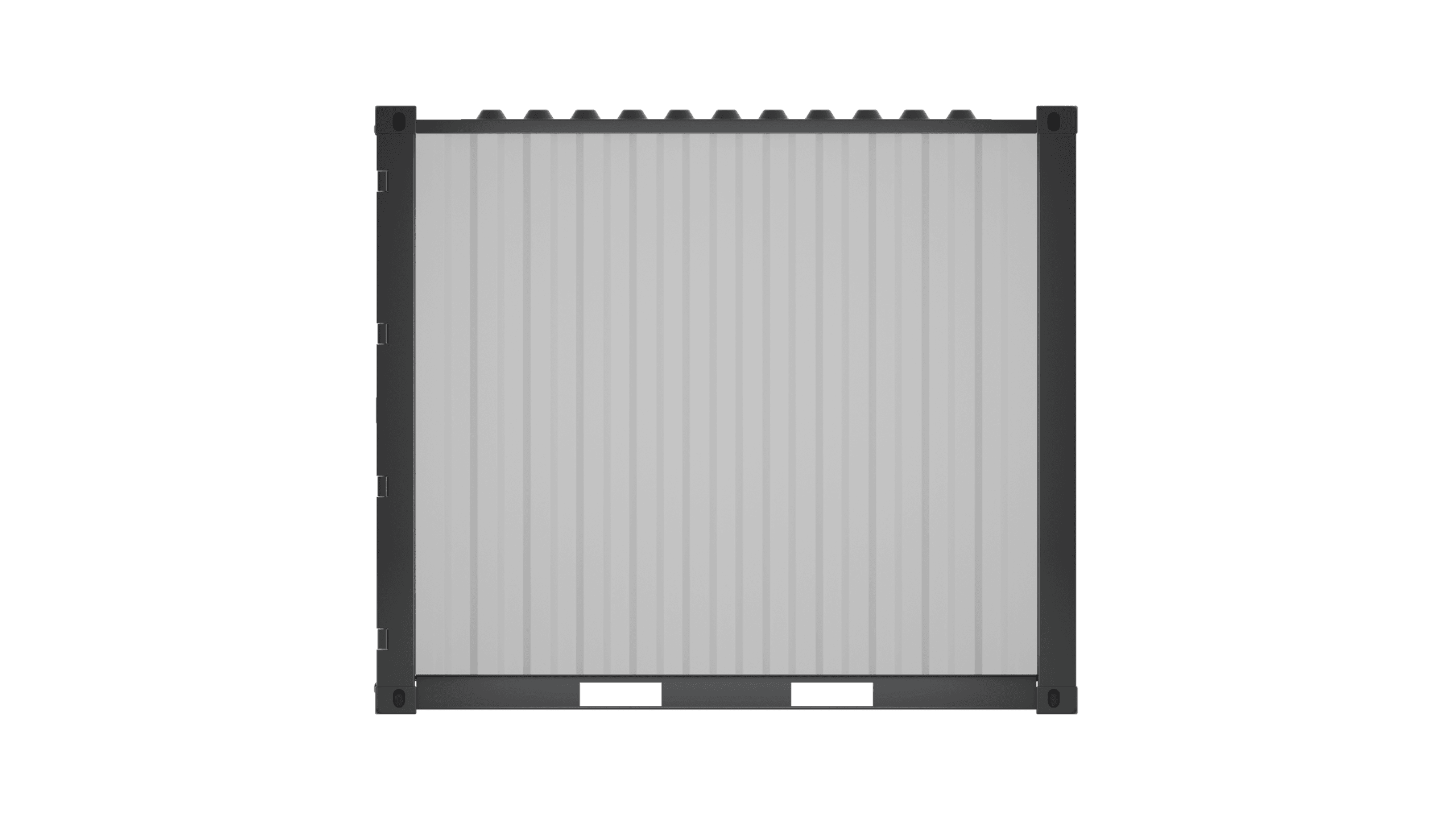

Interior side
Measurement set
Internal dimensions
Published values for this technical specification.
MetricImperial
Length2,840 mm9' 3.8"
Width2,350 mm7' 8.5"
Height2,393 mm7' 10.2"
Measurement set
Door opening
Front cargo doors · front · Double cargo doors with easy-open locking bars
MetricImperial
Width2,342 mm7' 8.2"
Height2,280 mm7' 5.8"
Sill height167 mm0' 6.6"
Measurement set
Forklift pockets
Paired openings visible on both sides.
MetricImperial
Opening width360 mm1' 2.2"
Opening height122 mm0' 4.8"
Center distance900 mm2' 11.4"
Measurement set
Capacity & weights
Published values for this technical specification.
MetricImperial
Internal volume16 m³565 ft³
Max gross11,250 kg24,802 lbs
Payload10,000 kg22,046 lbs
Tare1,250 kg2,756 lbs
Applications
Applications for 10ft Dry Van Container
The strongest use cases for this specification, based on its configuration and published selection criteria.
Suitable application
Self-storage
Containers used as rentable units in self-storage operations.
Selection criterion
Frequent relocation
ISO freight construction, corner castings, and the Corten-steel shell are designed for repeated lifting, transport, and redeployment. On white variants, the PU coating adds paint durability that helps the container remain presentable.
Application
Site storage
Secure temporary or permanent storage at an operating site.
Application
Equipment storage
Storage for tools, machinery, and operational equipment.
Selection criterion
Forklift traffic
The bamboo-composite floor supports normal pallet-truck and forklift loading within the published axle and floor limits; choose a steel-floor specification for intensive repeated traffic.
Selection criterion
Heavy rolling loads
Wheeled machinery may be loaded only after confirming wheel loads, axle loads, and load distribution against the published floor limits; a steel floor is preferred for repeated heavy rolling traffic.
Application
Last-mile logistics
Compact freight and storage deployments for urban and space-constrained locations.
Application
Construction site storage
Secure on-site storage for building materials, tools, and contractor equipment.
Selection criterion
Heavy point loads
Concentrated machinery loads require confirmation against the published floor rating and may need load-spreading plates; a steel-floor specification is the stronger starting point for repeated point loading.
Selection criterion
Moisture-resistant flooring
The bamboo-composite floor is intended for normal dry cargo use but remains an absorbent floor system; avoid prolonged damp exposure and choose steel for frequently wet operating conditions.
Application
Parts and spares storage
Organised, secure storage for replacement parts and maintenance inventory.
Selection criterion
Easy spill cleanup
Minor spills should be removed immediately, but the bamboo-composite floor and its joints can retain moisture or contaminants; choose steel where frequent cleanup is expected.
Selection criterion
High wear resistance
The bamboo-composite floor is durable for normal cargo handling; choose a steel-floor specification for abrasive loads or intensive repeated operations.
Construction
Build details
The family baseline describes the shared container design; specification values identify this exact configuration.
Family baseline
10ft Dry Van Container
A compact ISO dry van container for smaller storage, transport, and site projects.
10DV · Dry Van · 2,991 × 2,438 × 2,591 mm · iso nominal
View the 10ft Dry Van Container familyExact specification
10ft Dry Van Container
- Specification code
- 10DV-12GB-S01
- ISO size/type
- 12GB
- Commercial condition
- one trip
- Introduced
- 2026
Published construction attributes
Construction group
Floor strength
- Concentrated floor load
- Tested with 5,460 kg truck load
- Total wheel contact area
- 284 cm² · 180 mm wheel width
- Wheel centre spacing
- 760 mm
- Distributed floor load
- 1.8R - T uniform load; maximum 6 mm base deflection
- Test standard
- ISO 1496-1
- Evidence reference
- T001YS12G1G
Construction group
Access
- Location
- front
- Door type
- Double cargo doors with easy-open locking bars
- Opening
- 2,342 × 2,280 mm
- Sill height
- 167 mm
- Lockbox
- Yes
Construction group
Handling
- Forklift pocket access
- Both sides
- Pocket opening
- 360 × 122 mm
- Pocket center distance
- 900 mm
- Maximum stack height
- 4 containers high
Construction group
Construction
- Floor material
- Bamboo composite
- Wall material
- Corrugated Corten steel
- Roof material
- Corrugated Corten steel
- Gooseneck tunnel
- No
- Vent count
- 4 vents
Standards and approval
Applicable standards and CSC approval
Published design claims, assessment status, and approval references for this specification.
Standard
ISO 668
Series 1 freight containers — Classification, dimensions and ratings
- Applicability
- applicable
- Assessment
- designed to
Applicable to the stated Series 1 dimensions and rating system. Inferred from the dry-van ISO size/type code; compliance has not been assessed.
Standard
ISO 1161
Series 1 freight containers — Corner and intermediate fittings — Specifications
- Applicability
- applicable
- Assessment
- designed to
Applicable to Series 1 corner and intermediate fittings. Confirm manufacturer drawings or test documentation before assigning a stronger status.
Standard
ISO 1496-1
Series 1 freight containers — Specification and testing — Part 1: General cargo containers for general purposes
- Applicability
- applicable
- Assessment
- designed to
Applicable part for a general-purpose dry freight container. Confirm design or type-test documentation before assigning a stronger status.
Standard
ISO 6346
Freight containers — Coding, identification and marking
- Applicability
- applicable
- Assessment
- compatibility claimed
Applicable to container identification, size/type coding, and permanent markings. Coding applicability does not establish structural compliance.
Convention approval
CSC design approval
- Design approved
- yes
- Approval basis
- type approval
- Plate supplied
- yes
- Examination scheme
- assigned per unit
Technical questions
Frequently checked details
Direct answers based on the published values in this specification record.
This 10ft general-purpose container serves self-storage, site storage, equipment storage, construction site storage, parts and spares storage, and last-mile logistics. Its compact ISO 12GB footprint fits space-constrained urban deployments and on-site temporary storage.
The internal space measures 2840 mm long by 2350 mm wide by 2393 mm high, giving 16.00 m³ volume. The front double cargo doors open 2342 mm wide by 2280 mm high with easy-open locking bars.
Tare is 1250 kg, payload is 10000 kg, and maximum gross mass is 11250 kg. These are the published container weight values; confirm road, rail, or vessel limits separately.
This is the base general-purpose unit with a bamboo-composite floor. The family may include LR variants with lashing rails for cargo restraint or SF variants with steel floors for heavy or wet-conditions traffic.
Design approval is yes under type approval, and plates are supplied. The recorded plate field is 5 years from production date. Examination is assigned per unit, so the individual container's current plate and examination status must be checked.
Small quantities can be repainted. Larger production batches can be ordered in specific colors with project or company branding, subject to order requirements and confirmation.
Yes, the bamboo-composite floor supports normal pallet-truck and forklift loading within published limits, and ISO freight construction with corner castings suits repeated lifting and redeployment. For intensive repeated forklift traffic, a steel-floor specification is preferred.
Photo library
Production photography
Browse 25 reference photos by finish. Only the selected finish is loaded, keeping the technical page fast and focused.
